20m Luxury Temporary Warehouse Marquee Aircraft Hangar Sandwich Hard Walls
Overview:
Nowadays hangar tent is wildly used in all around the world, both military or civil aircraft need. Hangar tent is used for the Military Aviation and Civil Aviation as temporary or permanent hangars which can match many different kinds of aircraft.
Features:
- Durable, wind resistant, flame retardant with according certificates
- Large size automatic/ mamual lifiting door system
- Double PVC-coated polyester textile sidewalls
- Modular system able to flexibly extand and move
- Clear span design 100% interior space usable
- 100km/h wind load
- Full line accessories
Specification:

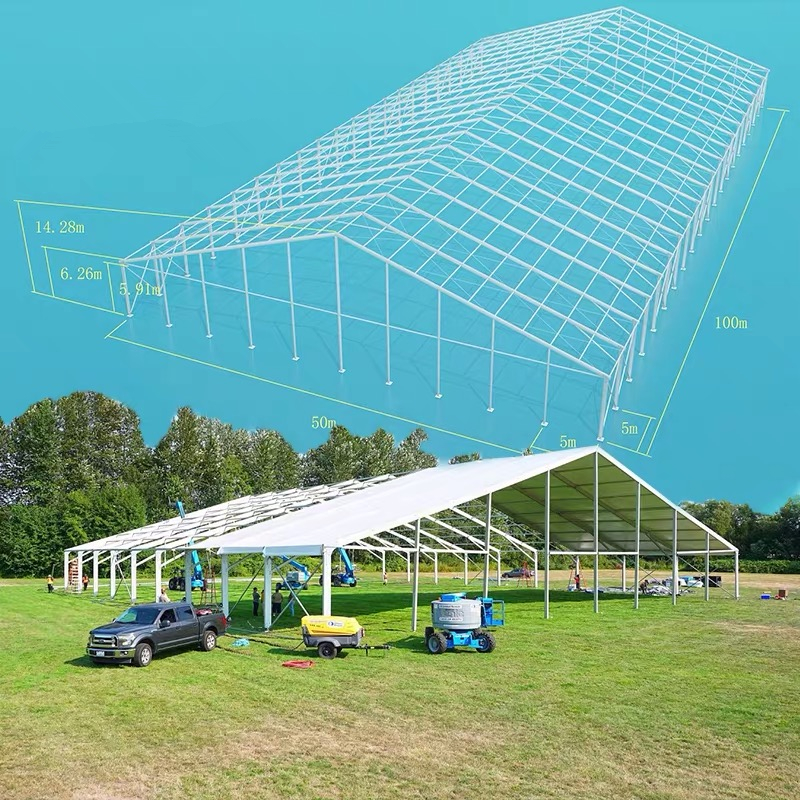

Main profile is 203x112x4mm, side height is 5m.
| Model | Span width | Eave height | Ridge height | Bay Distance | Length | Frame Profile |
|
| WT20E | 20m | 4m~6m | 7.2m~9.2m | 5m | 20m+5m more | 203x112x4mm |
| WT21F | 21m | 4m~6m | 7.4m~9.4m | 5m | 20m+5m more | 255x112x4.5mm |
| WT25F | 25m | 4m~6m | 8.0m~10.0m | 5m | 20m+5m more | 255x112x4.5mm |
| WT30F | 30m | 4m~6m | 8.8m~10.8m | 5m | 30m+5m more | 255x112x4.5mm |
| WT40G | 40m | 4m~6m | 10.5m~12.5m | 5m | 40m+5m more | 300x125x5mm |
| WT50G | 50m | 4m~6m | 12.1m~14.1m | 5m | 50m+5m more | 300x125x5mm |
| WT60G | 60m | 4m~6m | 13.7m~15.7m | 5m | 60m+5m more | 300x125x5mm |
Other Features & Specification:
1) Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
2) Wind load: Max. 100km/h (can be reinforced)
3) Snow load: 75kg/sqm (snow can't stay if use big degree roof design)
4) Easy to be assembled and dismantled, removeable
5) No pole inside, 100% room is available
6) Sizes can be customized(like side/leg height)
Color available:
white, red, yellow, blue, green, black, gray, transparent, etc.
Material:
1) Frame struss: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
2) Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
3) Connecter: Strong hot-DIP galvanized steel
Optional accessories:
1) covers: Colourful cover, transparent cover, inflatable roof cover
2) windows: Dome or square clear PVC windows, mesh window, glass window for glass wall
3) wooden flooring system: VIP, cassette, simple
4) doors: Double-swings glass door, single-swing glass door, glass fire door, hard PVC door
5) rolling door(automatic or manual)
6) sidewalls: Glass wall, PVC hard wall, sandwich panel wall, fiber glass wall
7) fixing methods: Ground anchors, weight plate, expandable screws
8) rain gutters (inner roof beam rain gutter or rain gutter between two tents)
9) lighting, AC, carpet, etc.
Product Certificate:
1). Fabric: Test reports for the fire retardant, standards:NFPA701, CFM & din 4102B1/M2
2). Structure safety: Certificates by the registered engineers in Shanghai Tongji University.
Reputation of WT Tent:
► 13 years' Tent producing and markting experience.
► 100% inspection before exporting and 100% after-sales service following.
► Innovating hardware design for more trendy and convenient.
► In order to improve efficiency, suppliers of raw material are neighboring.
► Focusing on PVC tents market and requirements.
